Oxford Alloys 2209-16 COATED ELECTRODE Diameter: 3/32 in
| Item ID | OXF2209-163-32 |
| AWS Spec: | 5.4 |
| AWS Class: | E2209-16 |
| UNS Number: | W39209 |
| Welding Process: | SMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
2209-16 COATED ELECTRODE
Item Number: OXF2209-161-8
Pkg Qty: 10
UOM: Pound
2209-16 COATED ELECTRODE
Item Number: OXF2209-165-32
Pkg Qty: 10
UOM: Pound
2209-16 COATED ELECTRODE
Item Number: OXF2209-163-16
Pkg Qty: 10
UOM: Pound
Product Description
- Used to weld duplex stainless steels such as (Type 2205).
- The welds offer excellent resistance to stress corrosion, cracking and pitting.
- The microstructure of the weld metal consists of austenite and ferrite.
- Welding of duplex stainless steels calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties.
- Common industries include: Oil & Gas, Chemical, and Petrochemical

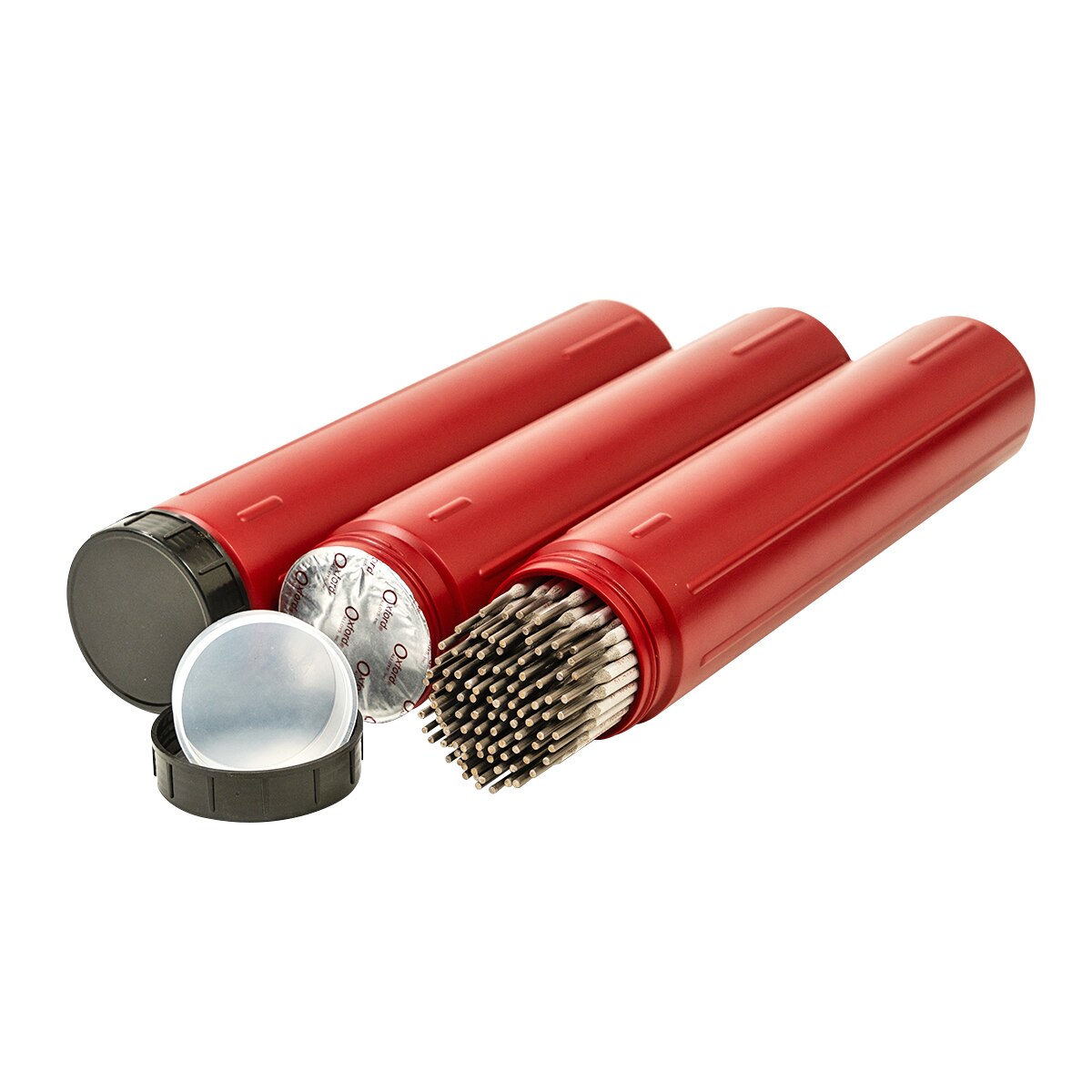

- Hermetically Sealed Tubes
- Stenciled with AWS classification
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Ni | Mo | S |
| 0.04 max | 0.5-2.0 | 1.0 max | 21.5-23.5 | 8.0-10.5 | 2.5-3.5 | 0.03 max |
| P | Cu | N | ||||
| 0.04 max | 0.75 max | 0.08-0.20 | ||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 690 (100) min | Not specified | 20 min |
| Typical Results - As welded | 860 (125) | 650 (94) | 32 |
