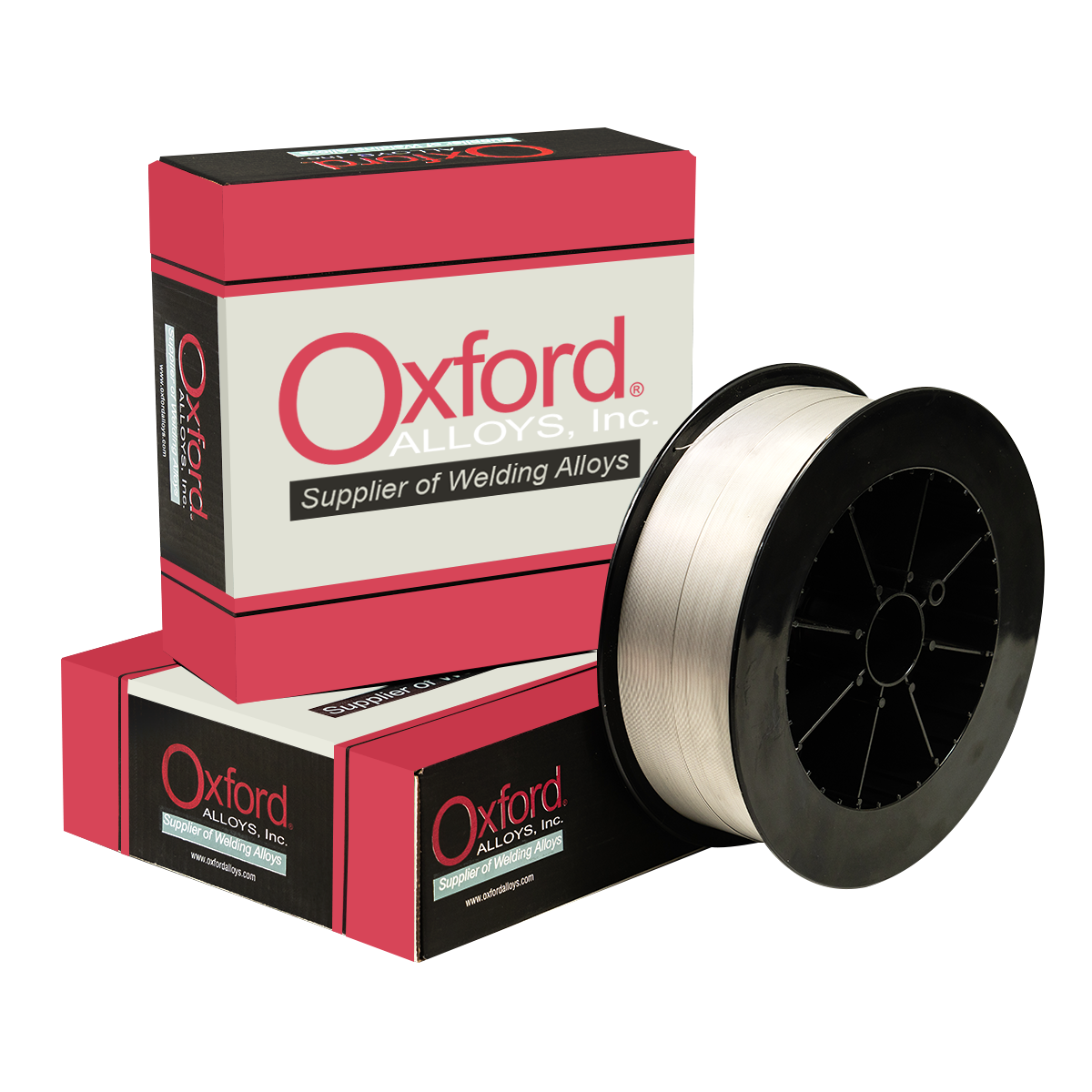

Oxford Alloys 825 MIG WIRE Pkg: 33 lb spool
| Item ID | OXF825MIG |
| AWS Spec: | 5.14 |
| AWS Class: | ERNiFeCr-1 |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
825 MIG WIRE
Item Number: OXF825.045X33
Pkg Qty: 33
UOM: Pound
Product Description
- Used for the welding of Incoloy® alloy 825 and other nickel-iron-chromium-molybdenum-copper alloys of similar composition.
- The weld metal of this filler metal is highly corrosion resistant, particularly in reducing chemicals such as sulfuric and phosphoric acids.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Ni | C | Mn | Fe | S | Si | Cu |
| 38.0-46.0 | 0.05 max | 1.0 max | 22.0 min | 0.03 max | 0.50 max | 1.5-3.0 |
| Cr | Al | Ti | Mo | P | ||
| 19.5-23.5 | 0.20 max | 0.60-1.20 | 2.50-3.50 | 0.03 max | ||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550 (80) typical | Not Specified | Not Specified |
| Typical Results - As welded | 550 (80) | - | 25 |
