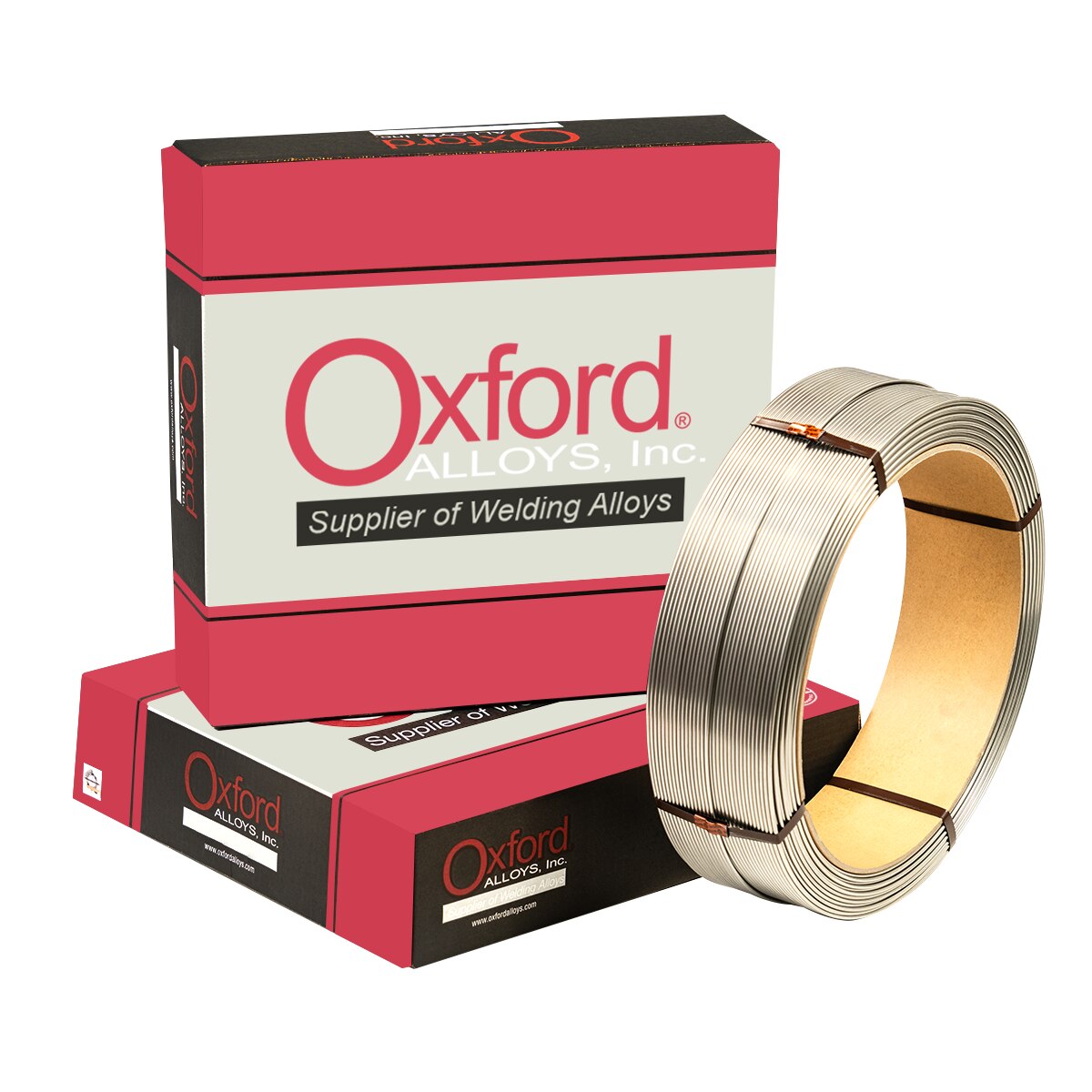

Oxford Alloys 82 SAW WIRE Diameter: 1/8 in
| Item ID | OXF821-8X60 |
| AWS Spec: | 5.14 |
| AWS Class: | ERNiCr-3 |
| UNS Number: | N06082 |
| Welding Process: | SAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
82 SAW WIRE
Item Number: OXF823-32X60
Pkg Qty: 60
UOM: Pound
Product Description
- Used for the welding of Inconel® alloys 600, 601, and 690, Incoloy® alloys 800 and 800HT, and Inco® alloy 330.
- Weld metal deposited by Oxford Alloy 82 has high strength and good corrosion resistance, including oxidation resistance and creep-rupture strength at elevated temperatures.
- Used in dissimilar-welding such as joining Inconel® alloys, Incoloy® alloys, and Inco® alloy 330 to nickel, Monel® alloys, stainless steels, and carbon steels.
- This filler metal is also used to join stainless steels to nickel alloys and carbon steels.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Ni | C | Mn | Fe | S | Si | Cr |
| 67.0 min | 0.10 max | 2.5-3.5 | 3.0 max | 0.015 max | 0.50 max | 18.0-22.0 |
| Ti | P | Nb+Ta | Cu | |||
| 0.75 max | 0.03 max | 2.0-3.0 | 0.50 max | |||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550 (80) typical | Not Specified | Not Specified |
| Typical Results - As welded | 460 (67) | 260 (38) | 28 |
