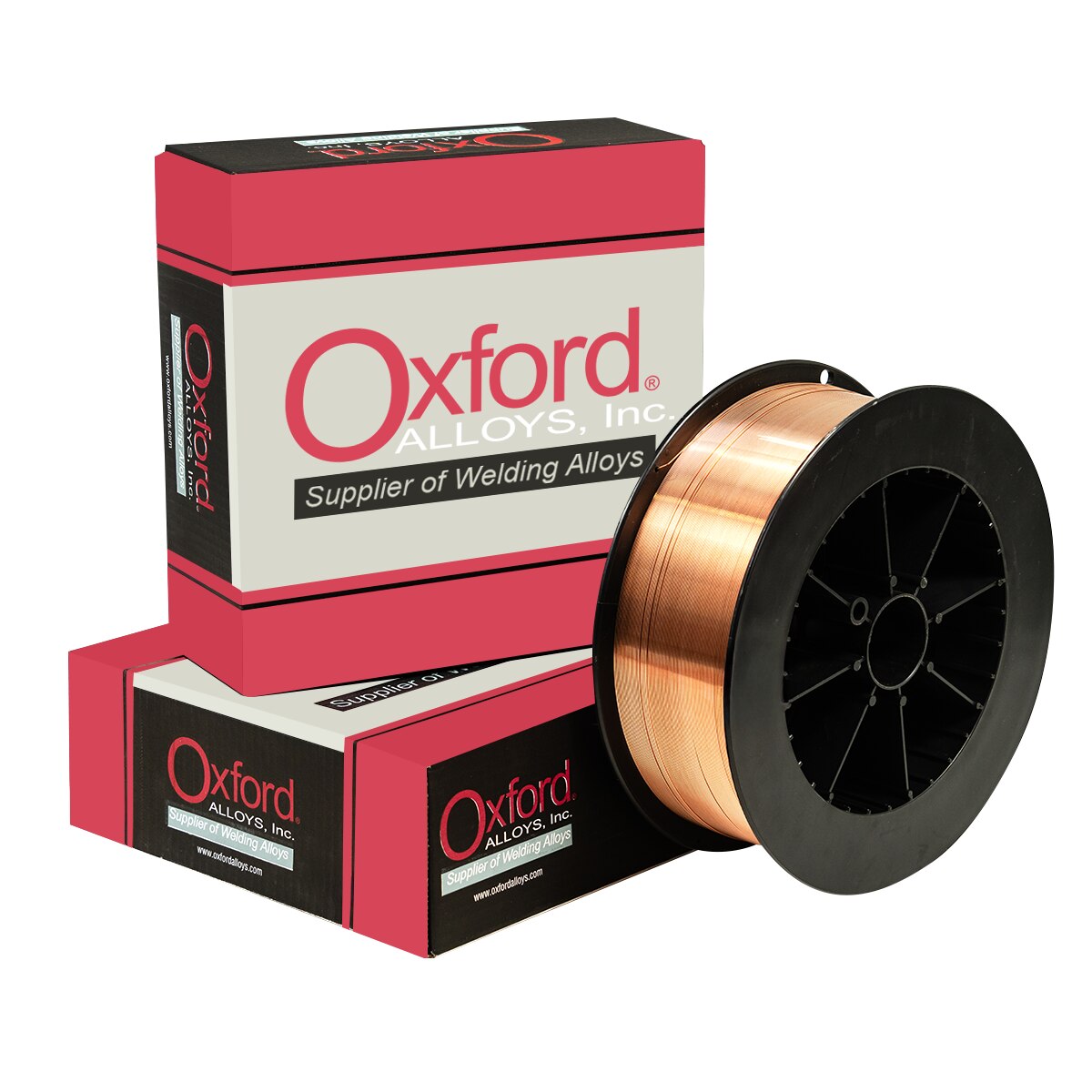

Oxford Alloys 80S-Ni2 MIG WIRE Pkg: 33 lb spool
| Item ID | OXF80S-Ni2MIG |
| AWS Spec: | 5.28 |
| AWS Class: | ER80S-Ni2 |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
80S-NI2 MIG WIRE
Item Number: OXF80S-NI2.035X33
Pkg Qty: 33
UOM: Pound
80S-NI2 MIG WIRE
Item Number: OXF80S-NI2.045X33
Pkg Qty: 33
UOM: Pound
Product Description
- Used for welding low alloy high strength steels requiring good toughness at temperatures as low as -40°F (-40°C).
- The weld deposits of this filler metal are similar to E8018-C1 electrodes.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | Ni | Cu |
| 0.12 max | 1.25 max | 0.40-0.80 | 0.025 max | 0.025 max | 2.00-2.75 | 0.35 max |
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550 (80) min | 470 (68) min | 24 min |
| Typical Results - As welded | 620 (90) | 530 (77) | 26 |
