Oxford Alloys 7018 COATED ELECTRODE Pkg: 10 lb Tube
| Item ID | OXF7018ELE |
| AWS Spec: | 5.1 |
| AWS Class: | E7018 |
| Welding Process: | SMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
7018 COATED ELECTRODE
Item Number: OXF70183-32
Pkg Qty: 10
UOM: Pound
7018 COATED ELECTRODE
Item Number: OXF70181-8
Pkg Qty: 10
UOM: Pound
7018 COATED ELECTRODE
Item Number: OXF70185-32
Pkg Qty: 10
UOM: Pound
Product Description
- An all position iron powdered low hydrogen electrode which exhibits excellent mechanical properties, crack resistance and X-ray quality.
- These electrodes are characterized by a smooth, quiet arc, very low spatter and medium arc penetration.
- Used in high tensile strength steels like ship hull constructions, pressure vessels and other heavy duty equipments

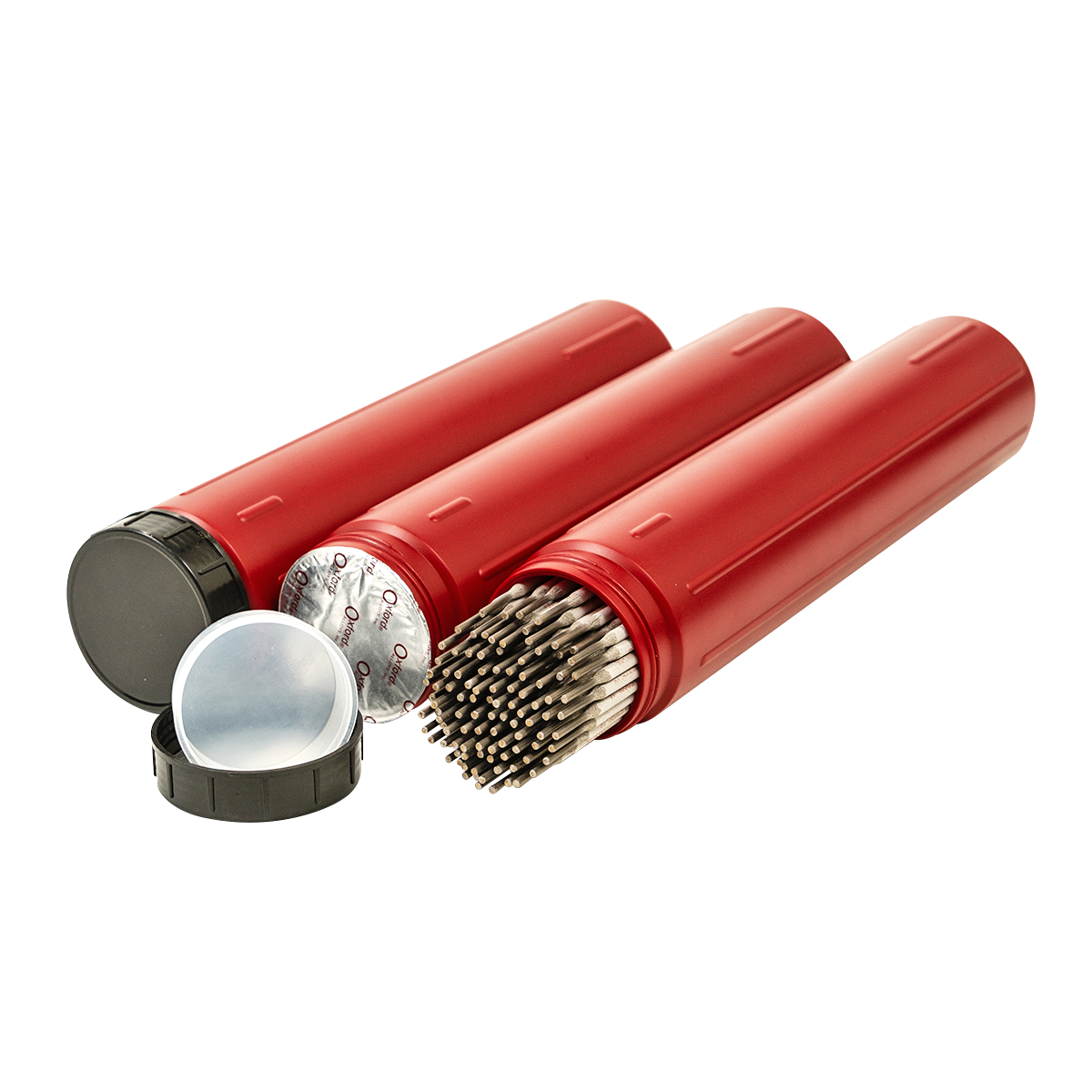

- Hermetically Sealed Tubes
- Stenciled with AWS classification
- Certified Material Test Reports on all heats
- ABS Approved
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | Ni | Cr |
| 0.15 max | 1.60 max | 0.75 max | 0.035 max | 0.035 max | 0.30 max | 0.20 max |
| Mo | V | Combined Limit for Mn+Ni+Cr+Mo+V | ||||
| 0.30 max | 0.08 max | 1.75 max | ||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 490 (70) min | 400 (58) min | 22 min |
| Typical Results - As welded | 585 (85) | 520 (74) | 29 |
