Oxford Alloys

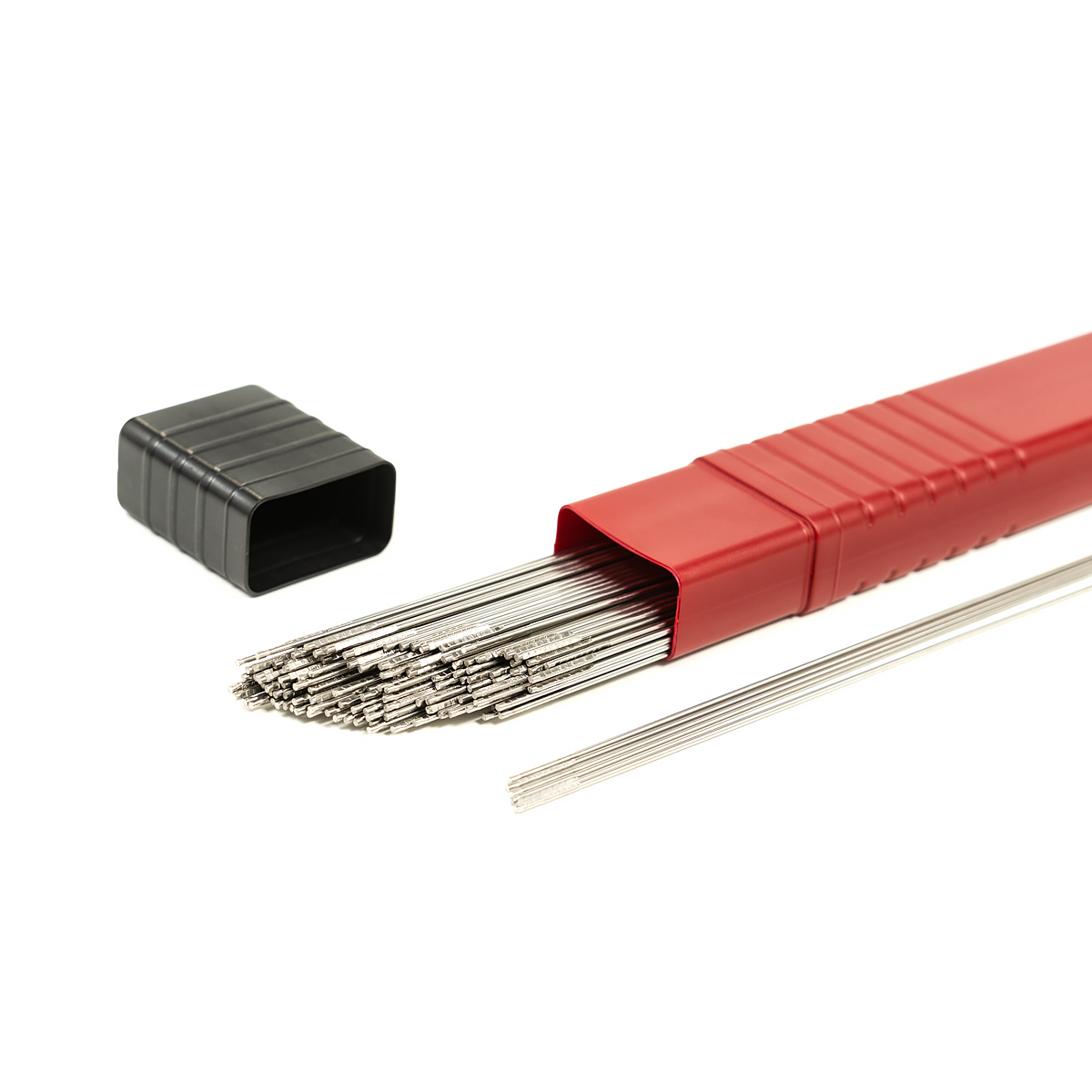

625 TIG WIRE

Diameter: 1/8 in

Product Description

Used for the welding of Inconel® alloy 625, Incoloy® alloy 825, Inco® alloy 25-6MO, and other molybdenum-containing stainless steels.
This filler metal is also used for surfacing of steel, for welding nickel steels, and for welding various corrosion-resistant alloys such as alloy 20.
The weld metal of Oxford Alloy 625 has high strength over a broad temperature range and has exceptional corrosion resistance, including resistance to localized attack such as pitting and crevice corrosion.
Useful for many dissimilar joints involving Inconel® and Incoloy® alloys, carbon steels, low-alloy steels, and stainless steels.
TIG Wire marked with AWS classification
Ultra clean finishing
Certified Material Test Reports on all heats

Technical

Chemical Composition
Ni	C	Mn	Fe	S	Si	P
58.0 min	0.10 max	0.50 max	5.0 max	0.015 max	0.50 max	0.02 max
Cr	Al	Nb+Ta	Mo	Ti	Cu
20.0-23.0	0.40	3.15-4.15	8.0-10.0	0.40 max	0.50 max
