Product Description

  • This electrode is recommended for metal-to-metal abrasion and high impact applications involving high temperatures and/or corrosive media.
  • Some typical applications are valves of all kinds, shear blades, hot punches and saw guides
  • Oxford Alloy #6 Coated is the most generally useful cobalt alloy; it has excellent resistance to many forms of mechanical and chemical degradation over a wide temperature range.
  • This alloy has outstanding self-mated anti-galling properties, high temperature hardness, and a high resistance to cavitation erosion, which result in its wide use as a valve seat material.

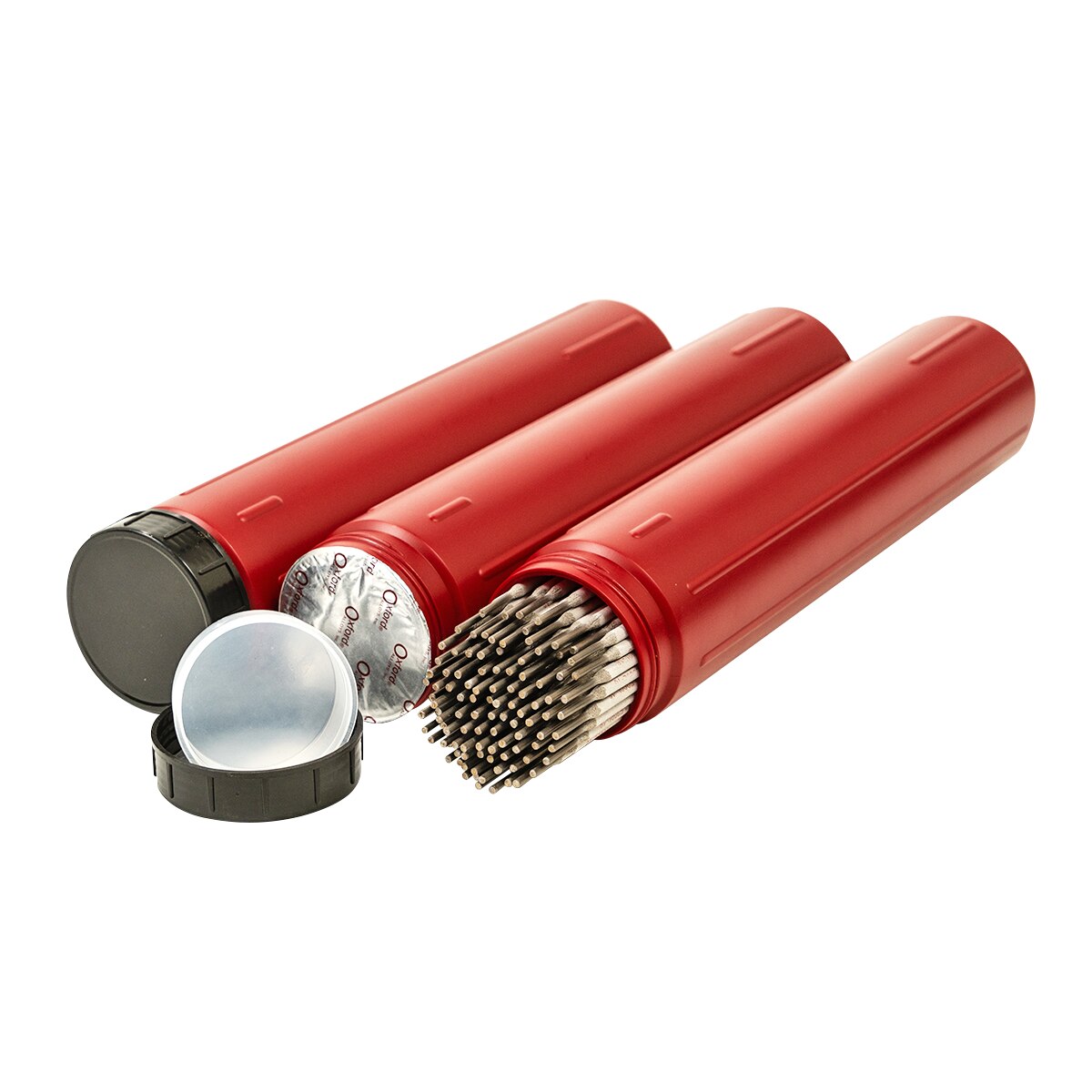

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Si

Cr

Ni

Mo

Fe

0.7-1.4

2.0 max

2.0 max

25-32

3.0 max

1.0 max

5.0 max

W

Co

3.0-6.0

Bal

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements
Typical Results -
As welded
