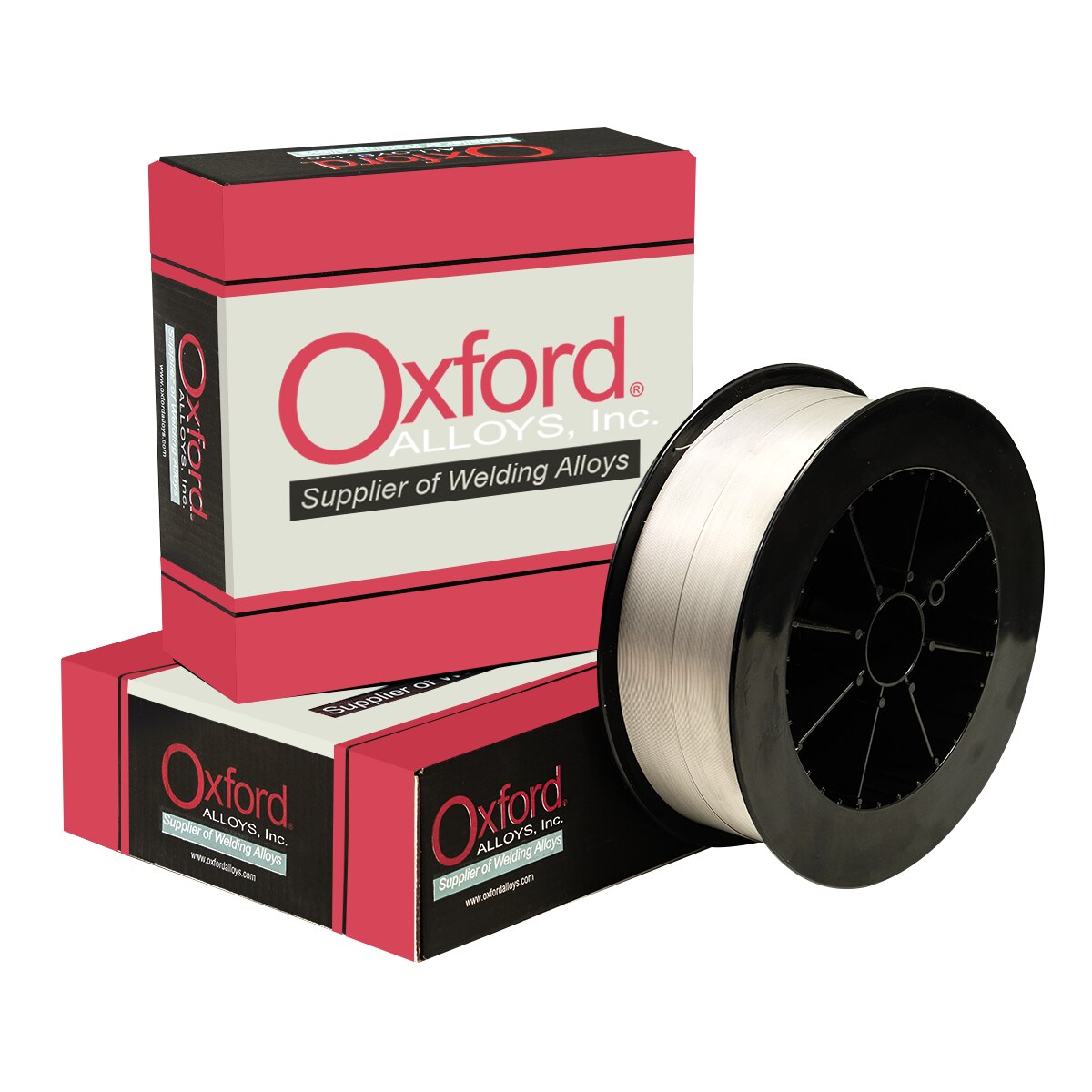

Oxford Alloys 59 MIG WIRE Diameter: 0.045 in
| Item ID | OXF59.045X33 |
| AWS Spec: | 5.14 |
| AWS Class: | ERNiCrMo-13 |
| UNS Number: | N06059 |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
59 MIG WIRE
Item Number: OXF59.035X33
Pkg Qty: 33
UOM: Pound
Product Description
- A nickel-chromium-molybdenum alloy with an extra low carbon and silicon content.
- This alloy is used to weld low-carbonnickel-chromium-molybdenum alloys, for welding the clad side of joints in steel clad with low-carbon-nickel-chromium-molybdenum alloys, and for welding low-carbon-nickel-chromium-molybdenum alloys to steel and to other nickel-base alloys, such as alloys C-276, 22, 625 and other high alloys such as 6Mo stainless, 825 and even common grades of stainless steels.
- Some typical base metals that this alloy is used on are ASTM and ASME B and SB 574, 575, 619, 622 and 626.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Fe | P | S | Si | Ni |
| 0.01 max | 0.5 max | 1.5 max | 0.015 max | 0.01 max | 0.10 max | Bal |
| Co | Al | Cr | Mo | Cu | ||
| 0.3 max | 0.1-0.4 | 22.0-24.0 | 15.0-16.5 | 0.50 max | ||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 760 (110) typical | Not Specified | Not Specified |
| Typical Results - As welded | 700 (102) | 400 (58) | 30 |
