Product Description

  • This electrode is used for welding of nickel-chromium-molybdenum alloys as well as for overlay cladding on carbon, low-alloy, or stainless steels
  • Also used for dissimilar joints between nickel-chromium-molybdenum alloys and stainless, carbon, or low alloy steels
  • Typical specifications for the nickel-chromium-molybdenum base metals are ASTM, F574, B619, B622, and B626 all of which have UNS Number N06022.
  • Offers excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments. This electrode also offers an outstanding resistance to stress corrosion cracking, pitting, and crevice corrosion.

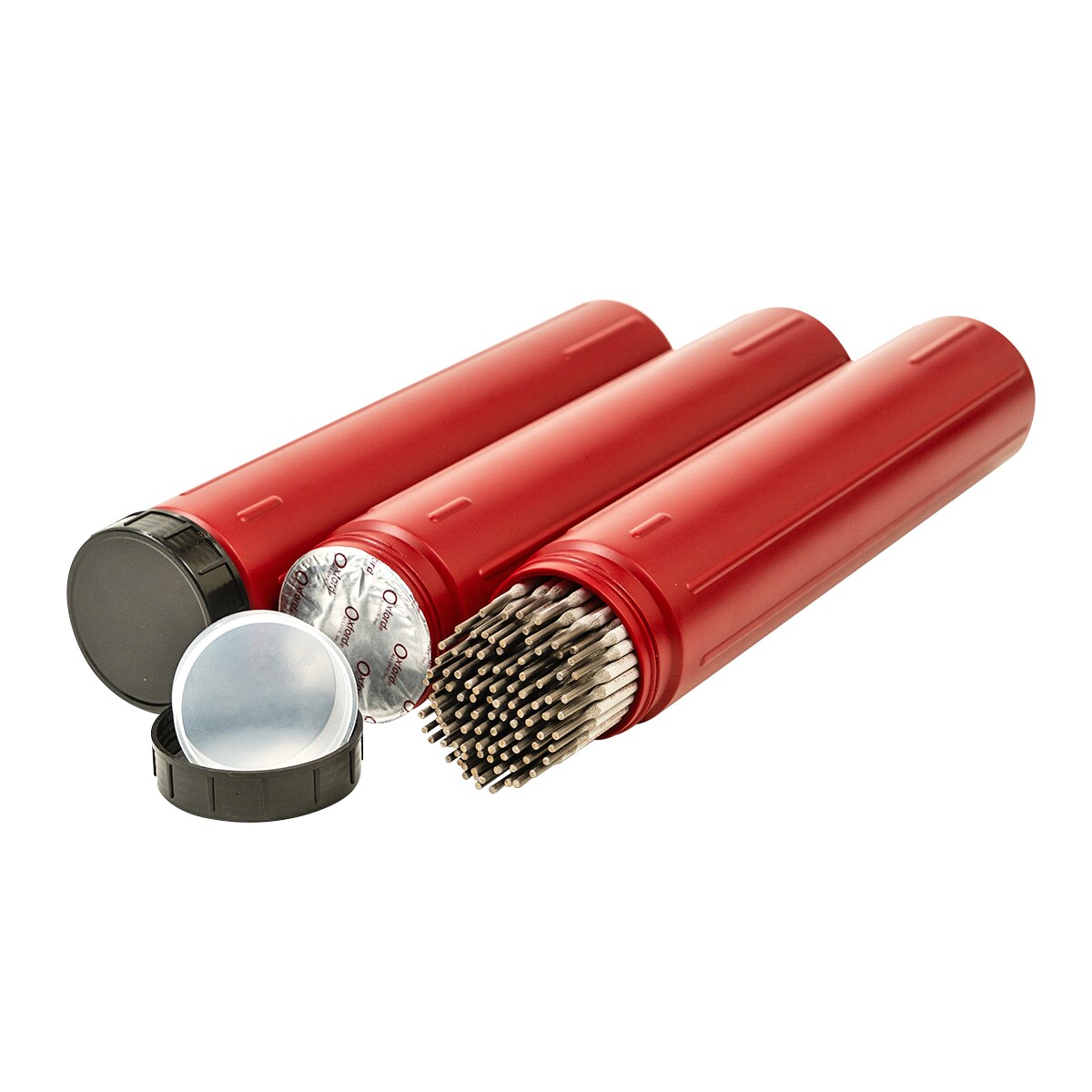

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Fe

P

S

Si

Cu

0.02 max

1.0 max

2.0-6.0

0.03 max

0.015 max

0.2 max

0.50 max

Ni

Co

Cr

Mo

V

W

Bal

2.5 max

20.0-22.5

12.5-14.5

0.35 max

2.5-3.5

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		690 (100) minNot specified25 min
Typical Results -
As welded		790 (115)540 (78)36
