Product Description

  • This electrode is recommended for metal to-metal abrasion involving high temperature and/or corrosive media with moderate impact.
  • Oxford Alloy #12 bare weld deposits are smooth and it acquires a high polish in use.
  • This alloy is nonmagnetic and is not forgeable. It can be machined with difficulty using carbide tools.
  • Oxford Alloy #12 Coated bonds well with weldable alloy steels, including stainless.

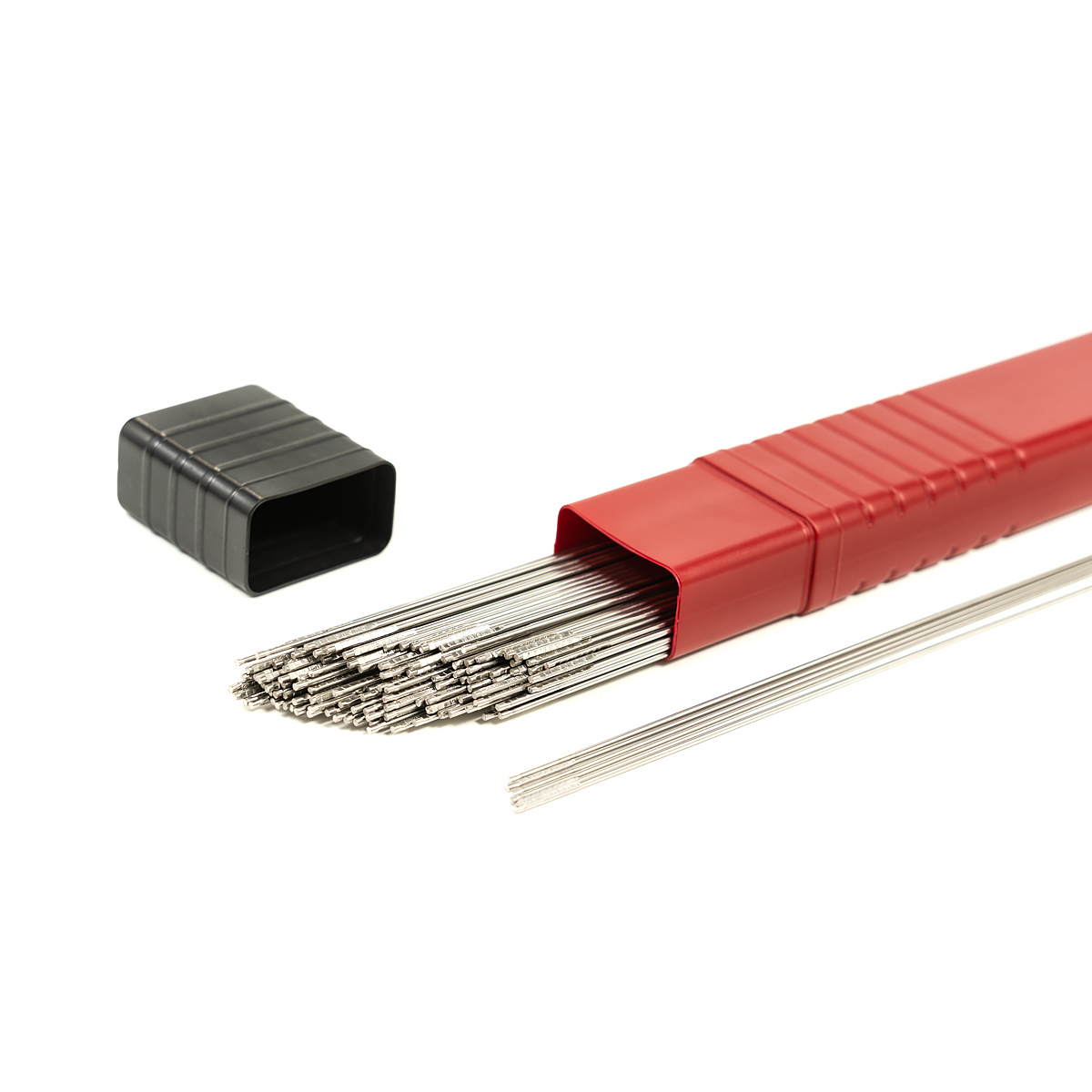

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
CMnSiCrNiMoFe
1.2-1.71.0 max2.0 max26.0-32.03.0 max1.0 max3.0 max
WCo
7.0-9.5Bal
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		Not specifiedNot specifiedNot specified
Typical Results -
As welded		---
