Product Description

  • This electrode is recommended for applications involving severe abrasion accompanied by heat and/or corrosion with moderate impact
  • The Oxford Alloy #1 Coated has a carbon content of 2.5 percent, which gives it a relatively high volume of carbides within its structure.
  • It acquires a mirror-like finish in use and retains wear resistance at high temperatures
  • This alloy is nonmagnetic and is not forgeable. It can be machined with difficulty using carbide tools.

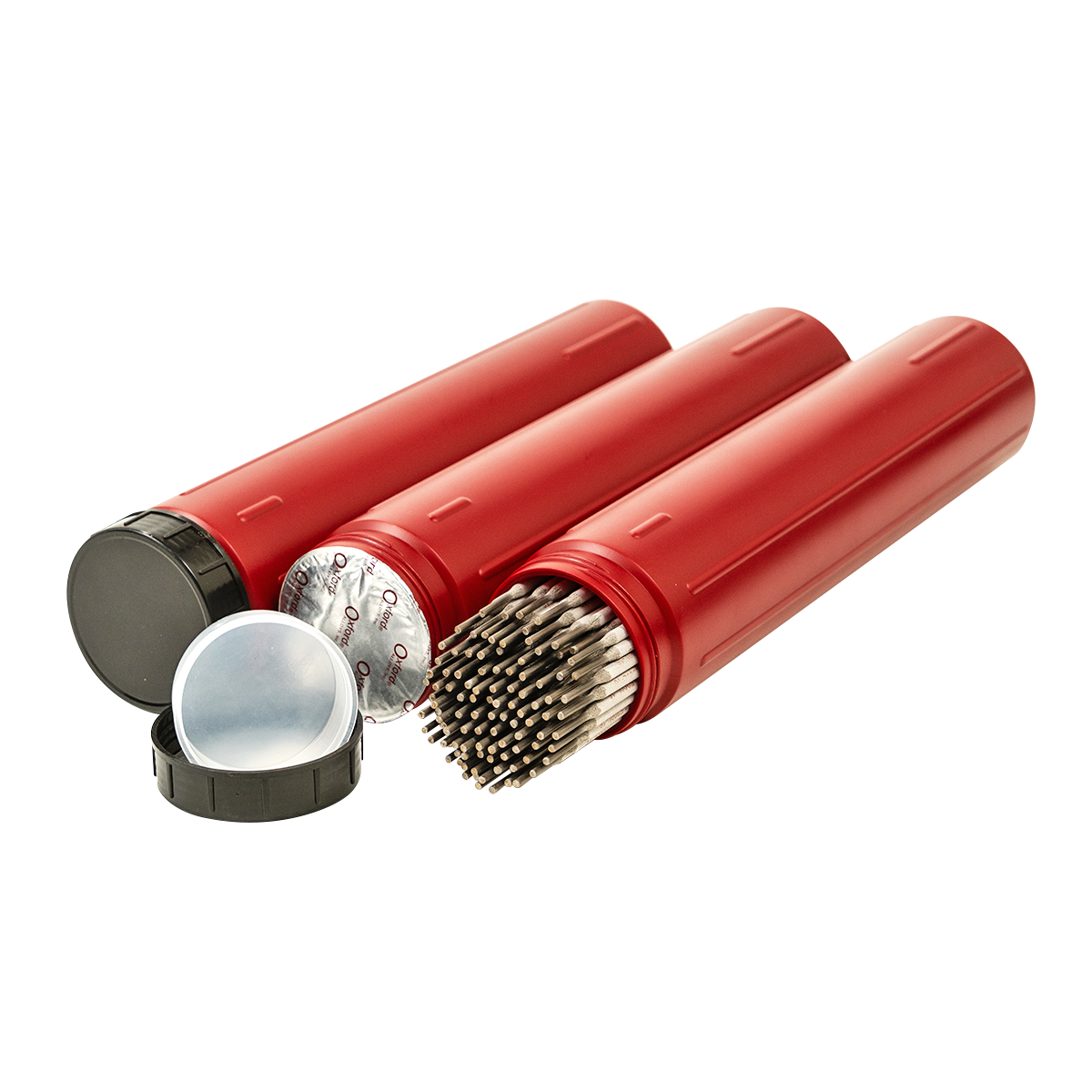

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Si

Cr

Ni

Mo

Fe

1.7-3.0

2.0 max

2.0 max

25-33

3.0 max

1.0 max

5.0 max

W

Co

11.0-14.0

Bal

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements
Typical Results -
As welded
